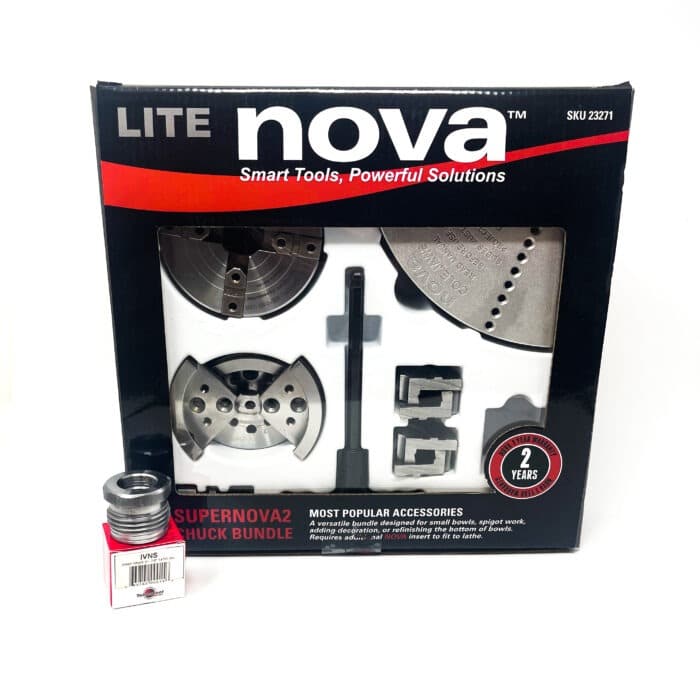

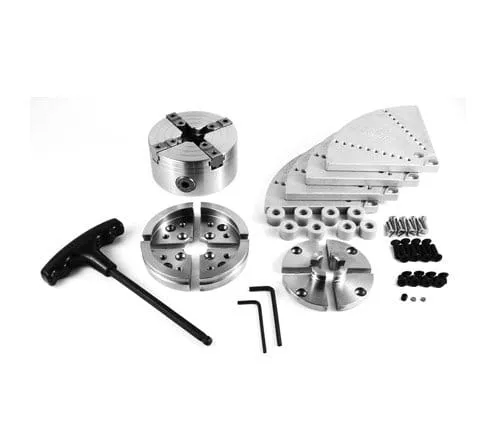

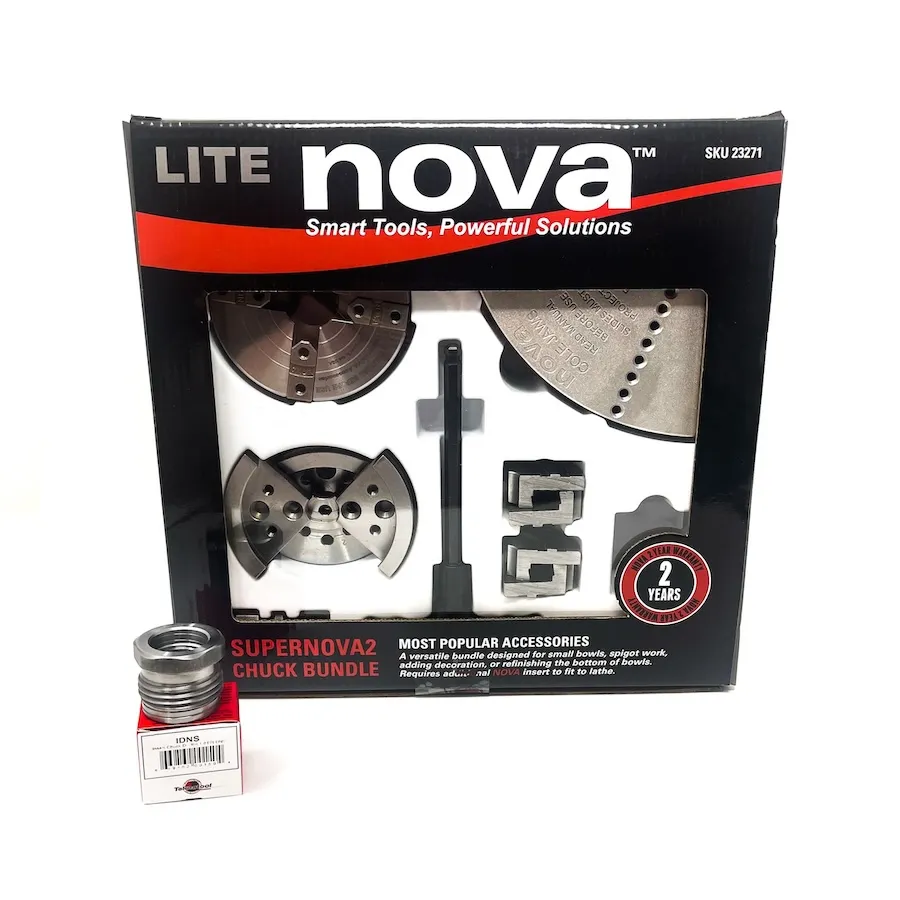

This is a great complementary kit as a 2nd chuck (everybody needs at least 2, right?) – it doesn’t include the 2″ jaws that normally come the kit, but the next 3 most popular jaws. This package also includes the threaded insert (you will need to specify this to purchase). If you don’t see the size you need please inquire.
SPECIFICATION:

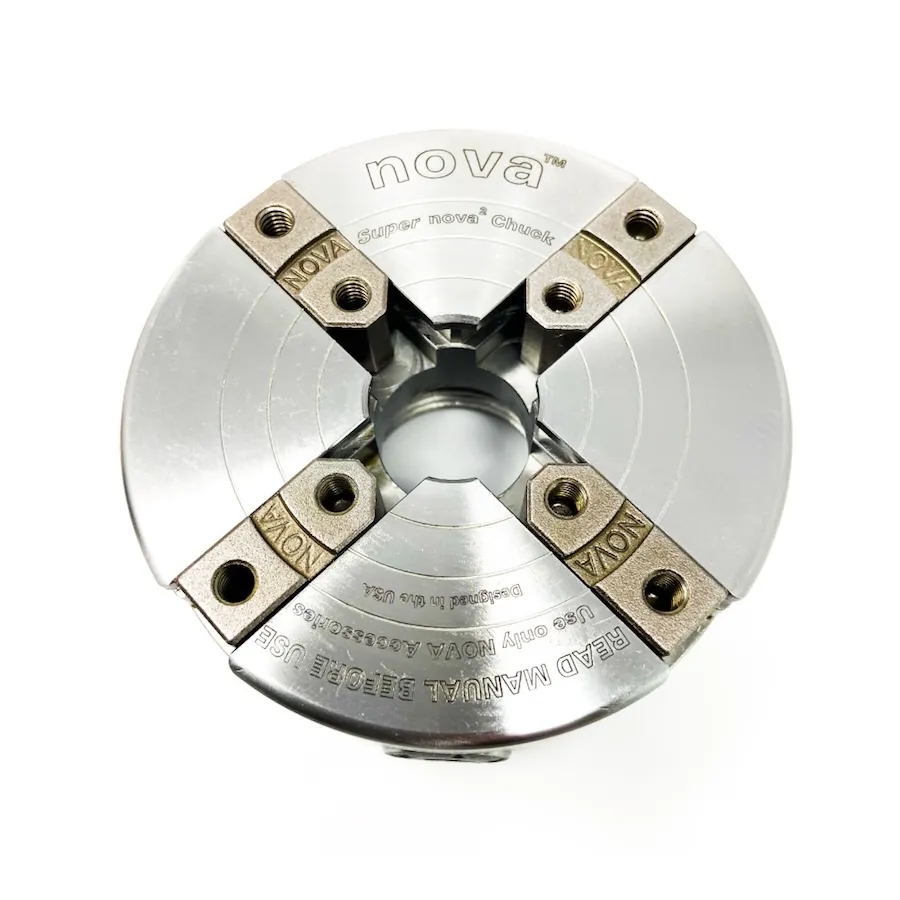

• Fits on any Standard NOVA chuck (Quick change requires additional Retro Fit or upgrade accessory)
• Special NOVA wood turning dovetail profile to dig in and hold wood securely
• Quick mounting
• Precisely machined from single solid steel billet for maximum quality and performance
• Perfect for gifting
• The 100mm and Cole Jaws come with additional fastenings.

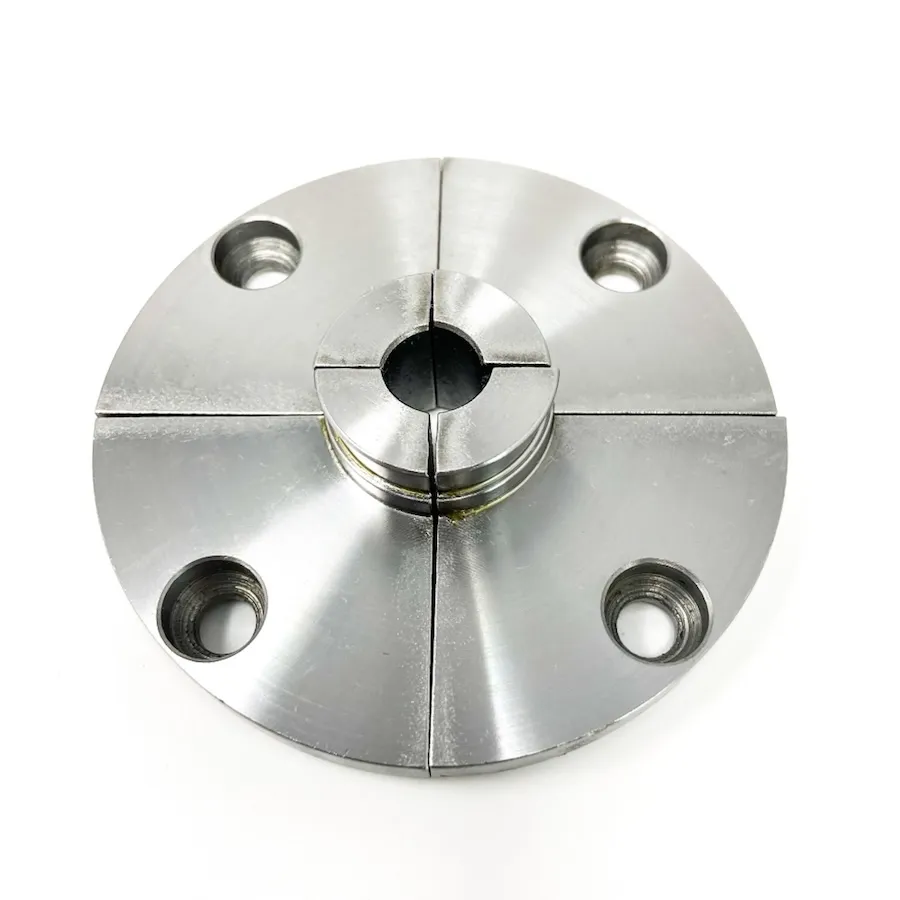

The NOVA 25mm/1″ (JS25) Jaw is convenient for small, unsupported spigot and bowl turning work. Expansion range is 1.02″-1.81″ and Contraction Square range is 1.10″-0.35″, Contraction Round range is 1.22″ – 0.39″.

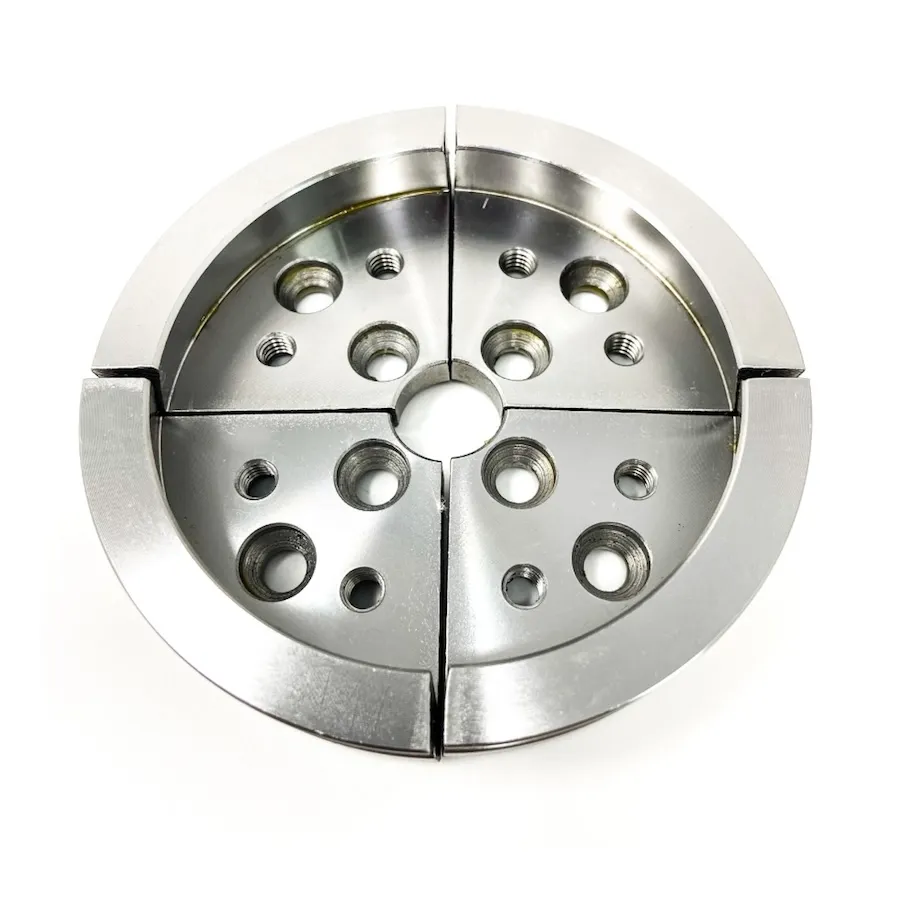

The NOVA 100mm/4″ (JS100N) Jaw is designed for expanded dovetail, reverse dovetail and for gripping footed bowls, around 12-14″ in diameter. It can also mount customized false wooden jaws so that you can design your very own customized jaws for your special projects. Expansion range is 3.81″-4.64″, Contraction range (around bowl foot) is square 3.03″ – 2.20″ and rounds is 3.89″-2.99″.

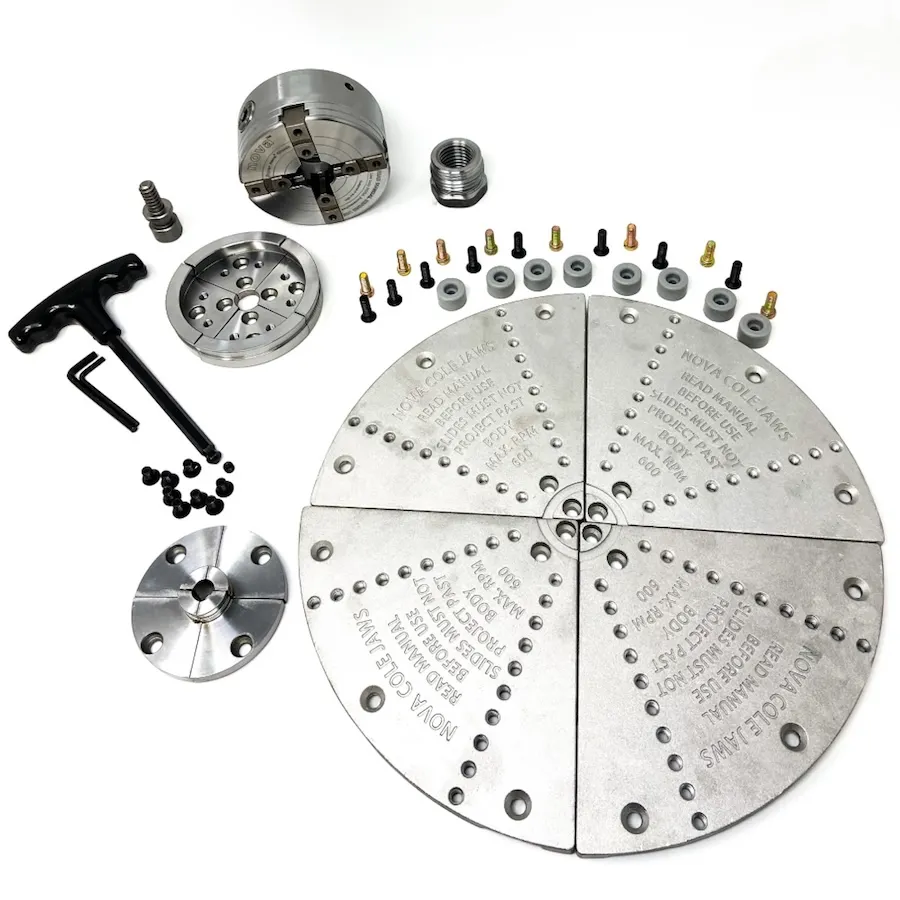

The Cole Jaws (JSCOLE) is a versatile set, designed for the re-mounting of bowls to remove chuck marks, or to add decoration, or to re-shape the bottom of the bowls that have already been turned. These standard Cole jaws are suitable for lathes with a minimum 12″/300mm swing diameter. Optional 6030 Jaw buffer kit extends the work holding options of the Cole Jaws even further. This bundle is an incredible value for money.
