RGWOOD 3 Piece 4” Wood Lathe Faceplate Bundle (1-1/4” x 8tpi)

RGWOOD 3 Piece 4” Wood Lathe Faceplate Bundle (1-1/4” x 8tpi) with locking set screws for reverse turning. This bundle also comes with a wrench for easy removal.

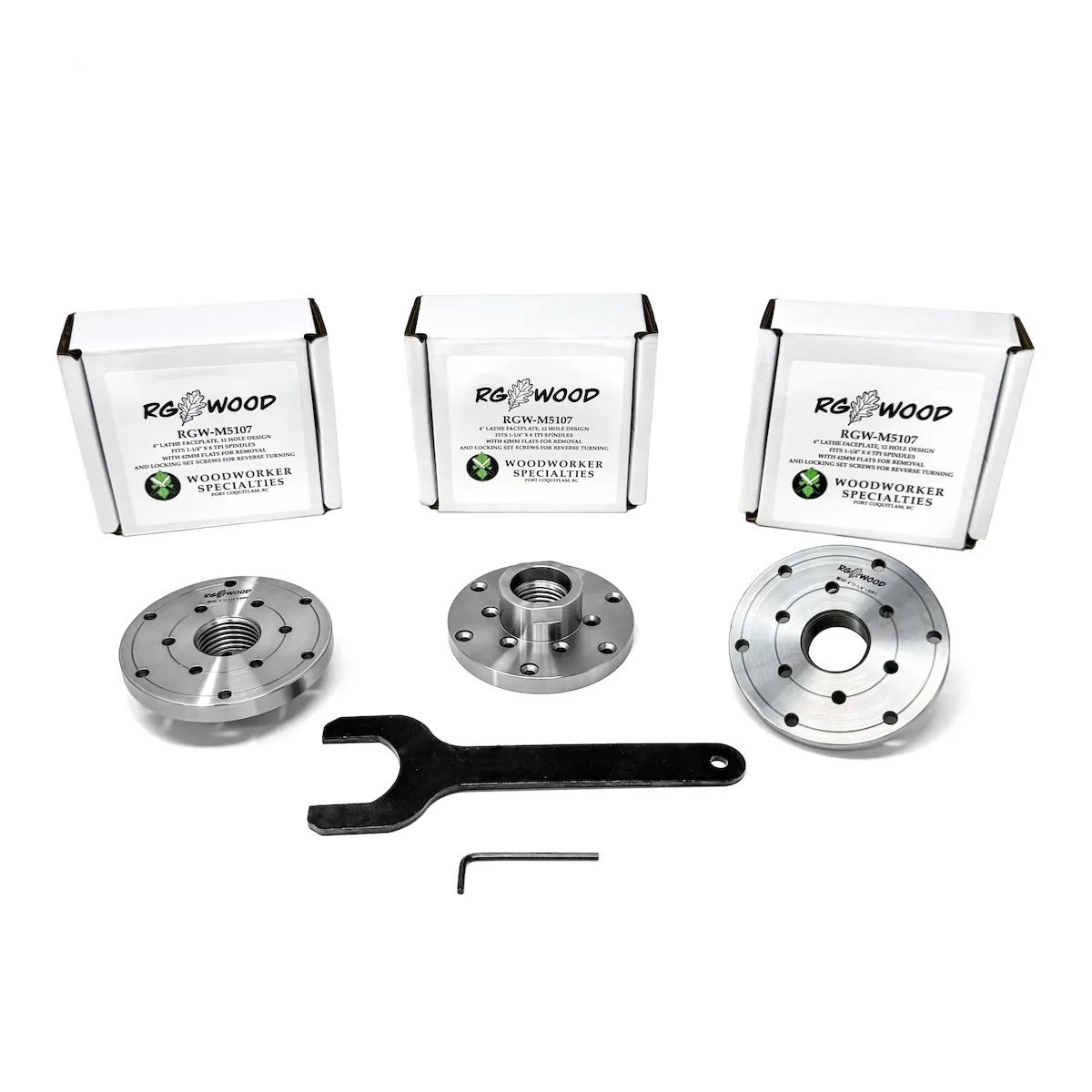

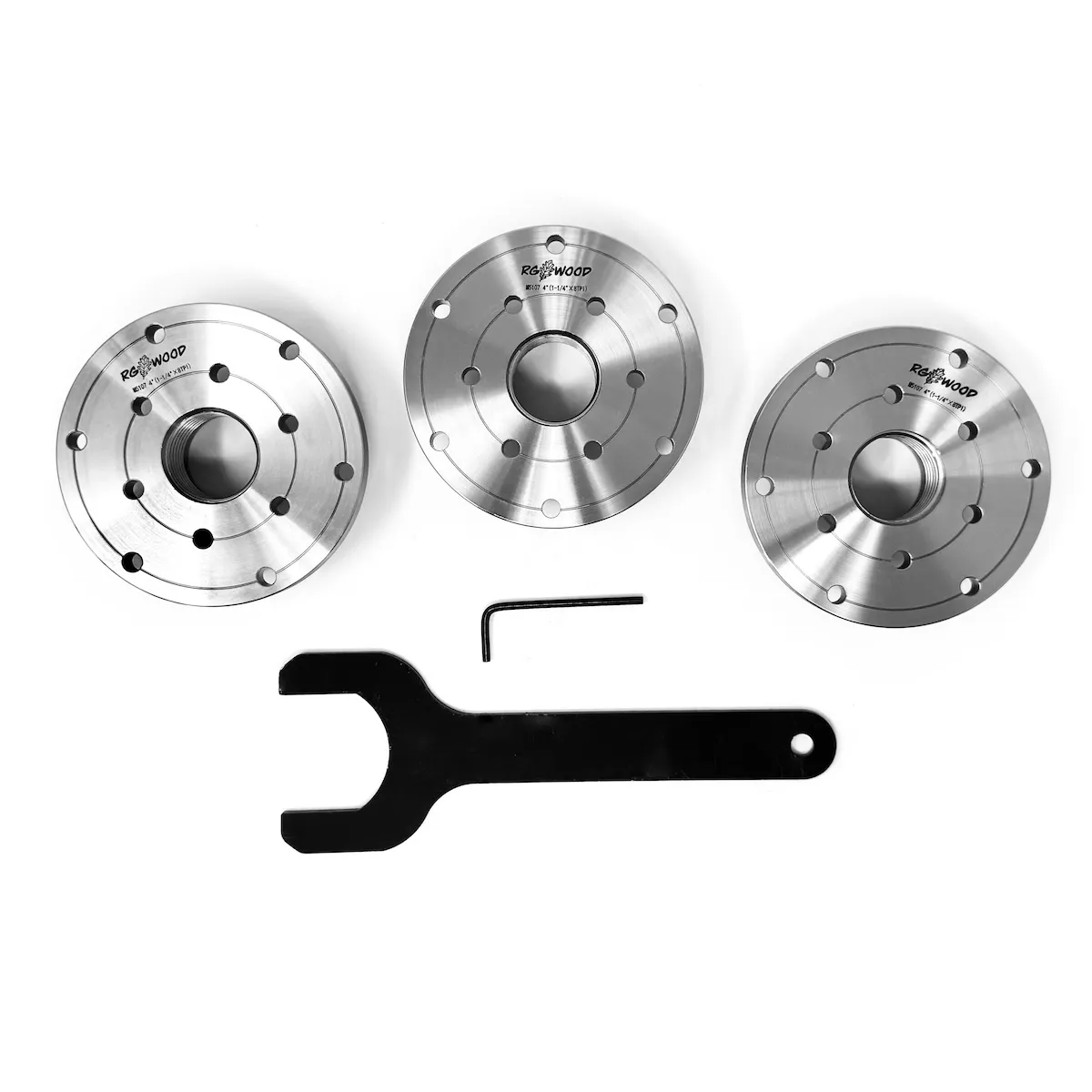

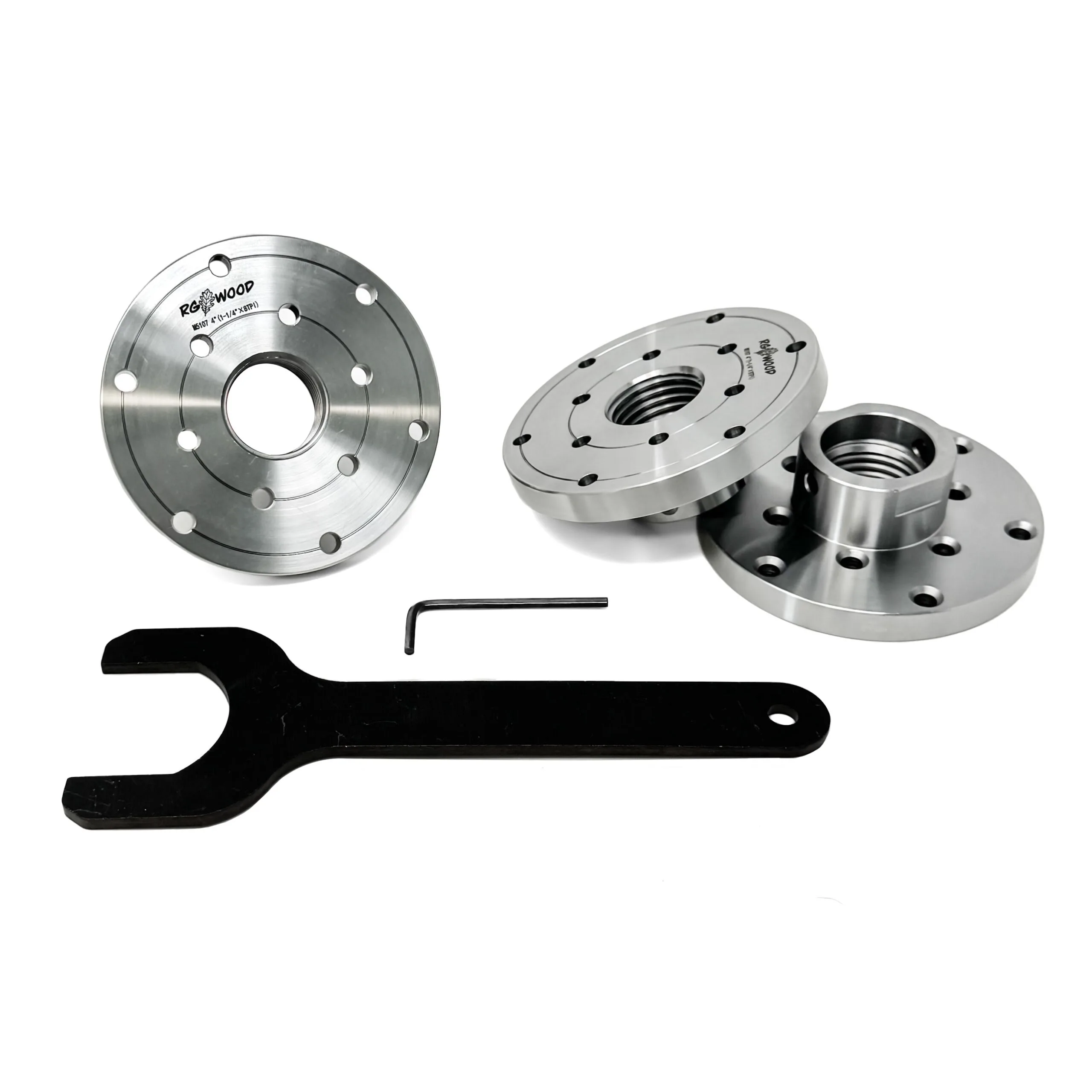

This 3 Piece 4″ Wood Lathe Faceplate Bundle for 1-1/4″ x 8tpi spindles includes/features:

• 3 identical 4” Faceplates to fit 1-1/4” x 8tpi spindles

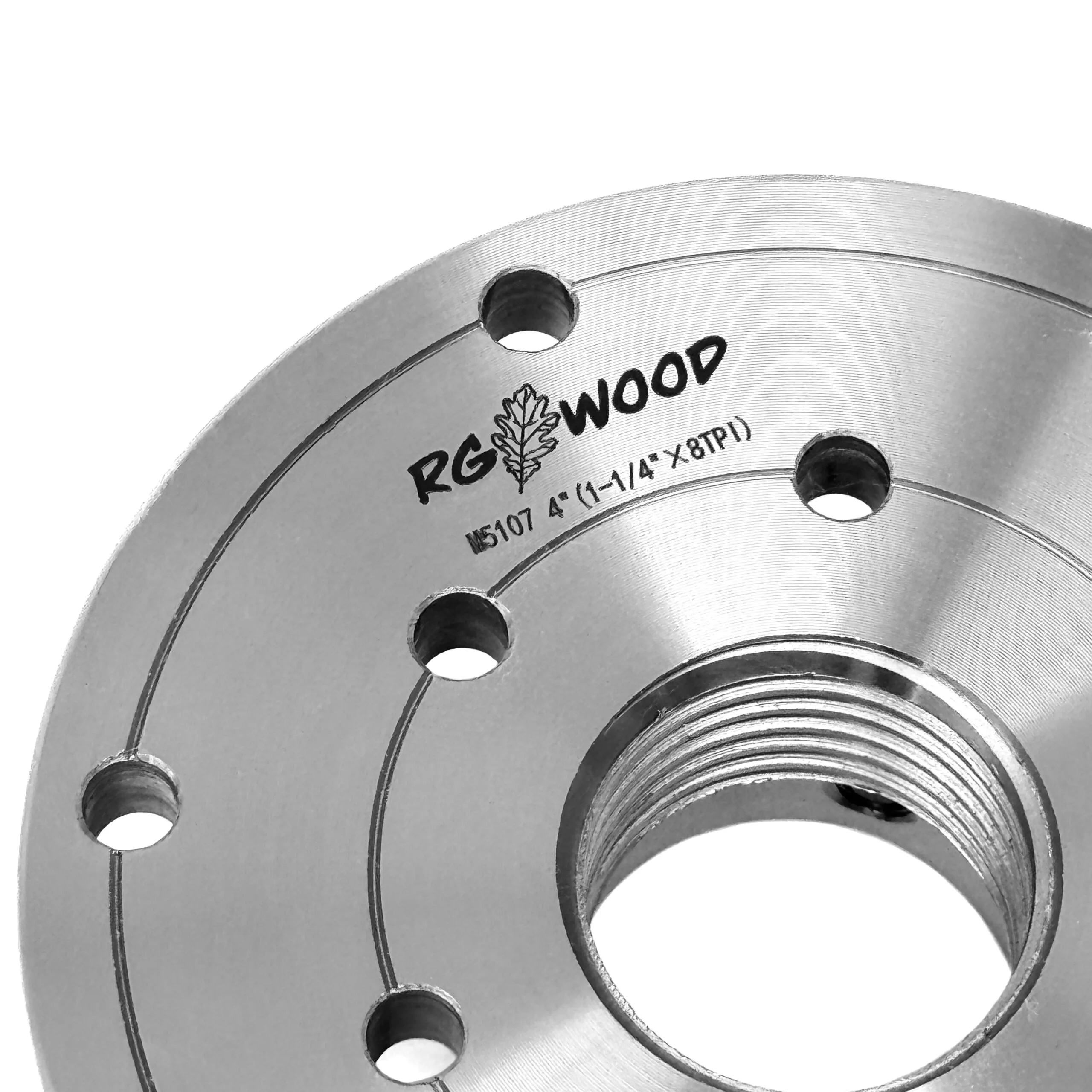

• 12 holes (2 rings of 6) on each faceplate for multiple fastening options

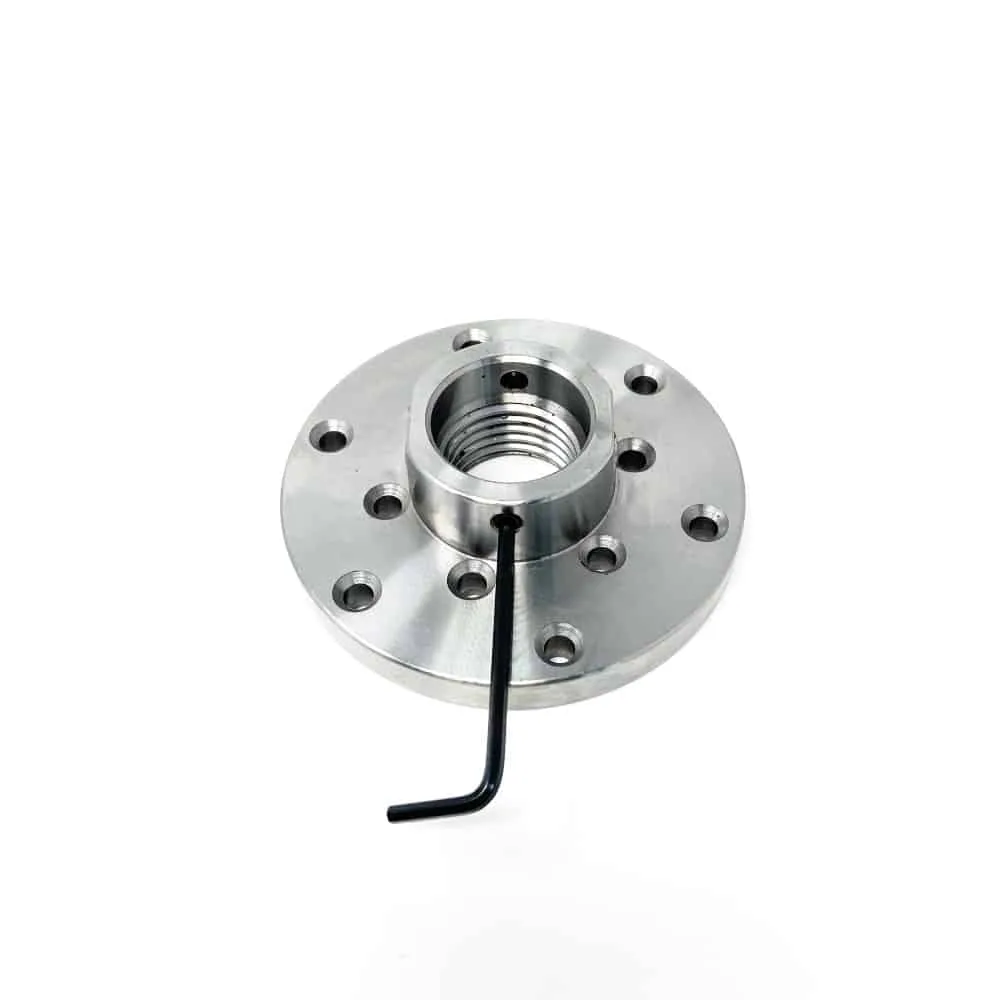

• Locking set screws on faceplates to lock to spindle for reverse turning

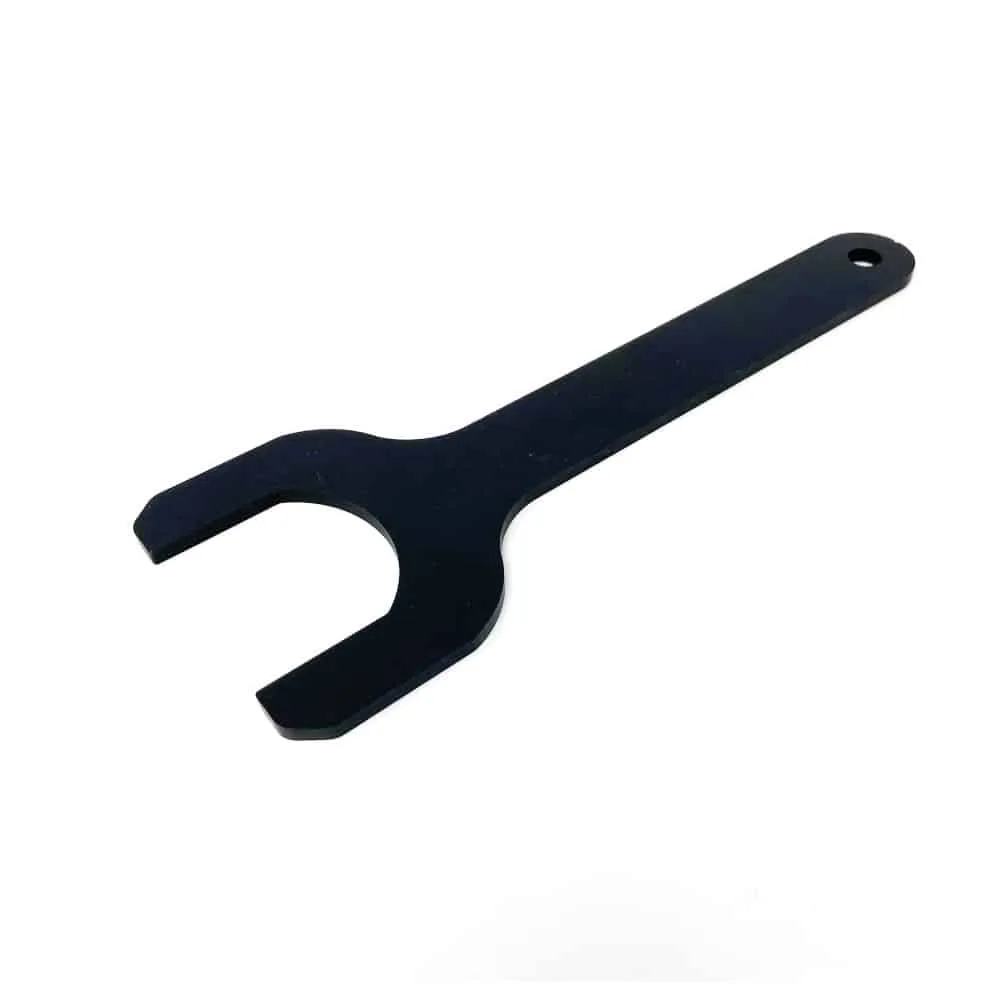

• 42mm spanner wrench included for easy removal from lathe
• Heavy duty faceplates are steel and 7/16″ thick.
• 1-1/4” depth (Laguna lathes may require spacer)

If you’re new to wood turning, here are some useful tips to help you get set up with your new faceplates:

1. Preparation: Ensure the lathe is off. Select the correct faceplate size that matches your lathe’s spindle thread.

2. Mounting: Screw the faceplate onto the lathe spindle clockwise, ensuring it’s tightly secured.

3. Wood Preparation: Choose a suitable piece of wood, cut it to rough dimensions if needed, and ensure one face is flat and square.

4. Attachment: Place the wood against the faceplate and use screws to secure it evenly around the perimeter. This ensures a stable hold.

5. Balance and Centering: Rotate the spindle manually to check for balance and adjust the wood or faceplate position as necessary. Use centering tools for accuracy.

6. Turning: Start the lathe at a low speed and gradually increase. Shape the wood using appropriate turning tools while wearing safety gear like goggles and a dust mask.

7. Finishing: Complete your turning project, periodically checking stability. Turn off the lathe and remove the wood by unscrewing the faceplate screws.

8. Maintenance: Clean and store the faceplate in a dry place after use.

Following these steps ensures safe and effective use of your wood lathe faceplate for turning wood projects.
