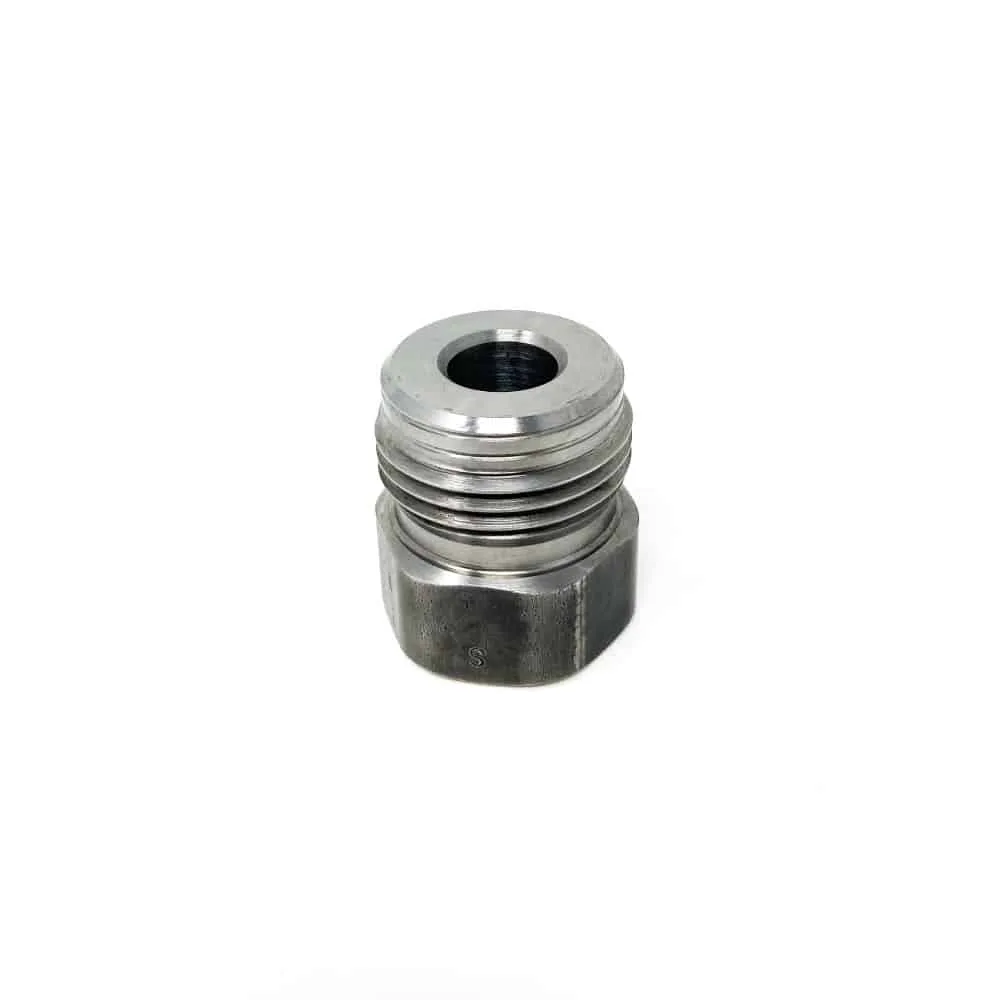

NOVA ISNS Chuck Insert 5/8″ Plainbore

The NOVA ISNS Chuck Insert 5/8″ Plainbore Allows you to ‘adapt’ your Insert Type NOVA Chuck to a 5/8″ Plain Bore Lathe (Shopsmith Pro V and Power Pro). Allows you to keep the same chuck and accessories if you change your lathe – you only need to change the insert/adaptor. The internal is a 5/8″ plain bore and the external thread matches the NOVA insert type chucks, to simply and easily screw into the back of your NOVA Insert Type Chuck. This makes your NOVA insert type chuck ready to attach to your 5/8″ Plain Bore Lathe spindle. Precisely machined from 1045 High Tensile Steel.

• NOVA has a range of chucks along with inserts in order to fit the majority of lathes that are currently available on the market.
• The insert/adaptor versions of NOVA chucks all use the same insert/adaptor system to ensure maximum adaptability and flexibility for the user.

HOW DOES THE INSERT SYSTEM WORK?

The insert fits into the back of the chuck and onto your lathe headstock spindle. The inserts are threaded both inside and out. The outside thread is made to fit into the NOVA Chucks. The inside thread comes in a variety of sizes. The size you need is determined by your lathe spindle thread size. See the insert thread chart below.

If you have reliable information for your spindle thread size but there is no match on the chart, you may have an unusual lathe that NOVA doesn’t have an adaptor for. You will need to purchase a blank chuck or a blank insert/adaptor and get it threaded to your requirements.

Some thread sizes we direct thread into the chuck body. Therefore, these don’t require insert adaptors. A directly threaded chuck body cannot be altered to an insert type body or another thread size once threaded. Be sure that your lathe thread size is not covered by the insert/adaptors first!

Terms:
BSF: British Standard Fine
BSW: British Standard Whitworth
RH: Right hand
LH: Left hand
TPI: Threads per inch
UN: Unified National Standard
UNC: Unified Coarse Standard
UNF: Unified Fine Standard
UNS: Unified Special

Chuck Insert/Adaptors

The thread sizes listed are the size which the adaptor converts to
(e.g. The thread size listed in the table should match the thread size on your lathe spindle.)
Click here if you don’t know your lathe spindle thread size.

Sizes listed below are subject to change.
Always best to check with your lathe manual and manufacturer.
