Name: NOVA 5015 Live Center System #2MT
Brand: Nova
SKU: LL-5015
Price: 99.95 CAD
Availability: InStock

NOVA 5015 Live Center System #2MT

$99.95 CAD

Compare

This unique combination centre system provides a high quality, comprehensive tailstock support for virtually all spindle turning requirements.

It has over 7 functions in one handy unit. Precision machined and 3 bearings for maximum long life.

Fast, precise and powerful tailstock support system.
Designed for the tough demands of modern woodturning
2 year warranty
Versatile – over 6 functions in one handy unit
Quick change tapers. Fast mounting of centre pieces.
Long life quality triple bearing system
Fits all lathes with standard MT tailstock quill
Includes unique stepped cone system as standard, allowing ultra fast and convenient mounting of work.
Can handle both heavy and delicate work
Can handle both hard and soft woods
Hollow centre allows the user to drill through centre. Great for cable access for lamps etc
Instruction manual included

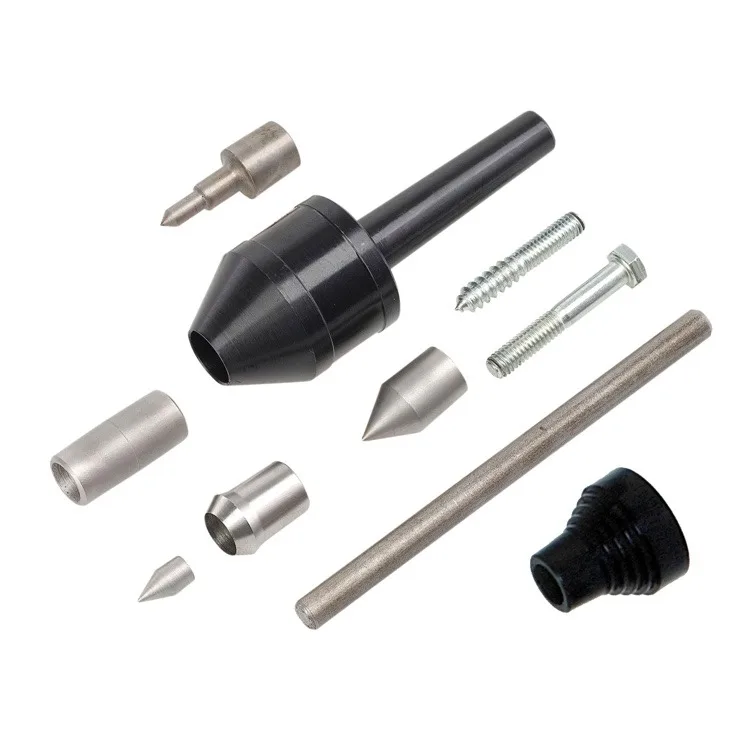

Standard Parts

1 quick change Morse Taper (2MT)Fits all NOVA lathes and other lathes have 2MT. However, for lathes with 1 or 3 MT, by using appropriate adaptor, this unit can be fitted also.* * 4MT or larger adaptor should not be used.
Threaded CentreThis centre has an internal thread to mount either a bolt or a screw (hanger bolt) This enables the centre to be used to mount wooden plugs, disks or mandrels as support pieces for turning either bowl work or spindle applications. With it’s internal cone form, this centre can also be used for quick centreless mounting of squares or rounds up to 8mm for spindle applications. This centre is also needed to mount the large stepped cone accessory.
Miniature Extension CentreThis item is designed to support thin work or small, delicate turnings. The diameter of the stem is 1/4″ so this centre can double as a 1/4″ pen mandrel. Two of these centres could be used for each half of the pen mandrel – one being fixed in the Live Centre, the other being located in the headstock spindle.
60 degree centreIt is good all purpose centre designed for a wide variety of applications. Ideal for medium to hardwoods.
Hollow cup centre and pointIdeal for softwood support, the Hollow Cup Centre comes with it’s own demountable centre point. By using the hollow cup centre, turners will able to dig a hole within the spidle item.
Stepped ConeThe Stepped cone is a quick and convenient way to mount centreless rounds up to 40mm(19/16″), split turning or other work without a centre. Reverse mounting of cone allows wedge fit of hollow section work. Needs the Threaded Centre to mount it on the Live Centre.

Description

1 quick change Morse Taper (2MT)Fits all NOVA lathes and other lathes have 2MT. However, for lathes with 1 or 3 MT, by using appropriate adaptor, this unit can be fitted also.* * 4MT or larger adaptor should not be used.
Threaded CentreThis centre has an internal thread to mount either a bolt or a screw (hanger bolt) This enables the centre to be used to mount wooden plugs, disks or mandrels as support pieces for turning either bowl work or spindle applications. With it’s internal cone form, this centre can also be used for quick centreless mounting of squares or rounds up to 8mm for spindle applications. This centre is also needed to mount the large stepped cone accessory.
Miniature Extension CentreThis item is designed to support thin work or small, delicate turnings. The diameter of the stem is 1/4″ so this centre can double as a 1/4″ pen mandrel. Two of these centres could be used for each half of the pen mandrel – one being fixed in the Live Centre, the other being located in the headstock spindle.
60 degree centreIt is good all purpose centre designed for a wide variety of applications. Ideal for medium to hardwoods.
Hollow cup centre and pointIdeal for softwood support, the Hollow Cup Centre comes with it’s own demountable centre point. By using the hollow cup centre, turners will able to dig a hole within the spidle item.
Stepped ConeThe Stepped cone is a quick and convenient way to mount centreless rounds up to 40mm(19/16″), split turning or other work without a centre. Reverse mounting of cone allows wedge fit of hollow section work. Needs the Threaded Centre to mount it on the Live Centre.

Additional information

Wood Turning	Accessories
