NOVA JS25N Dovetail Jaw Set (25mm)
$64.95 CAD

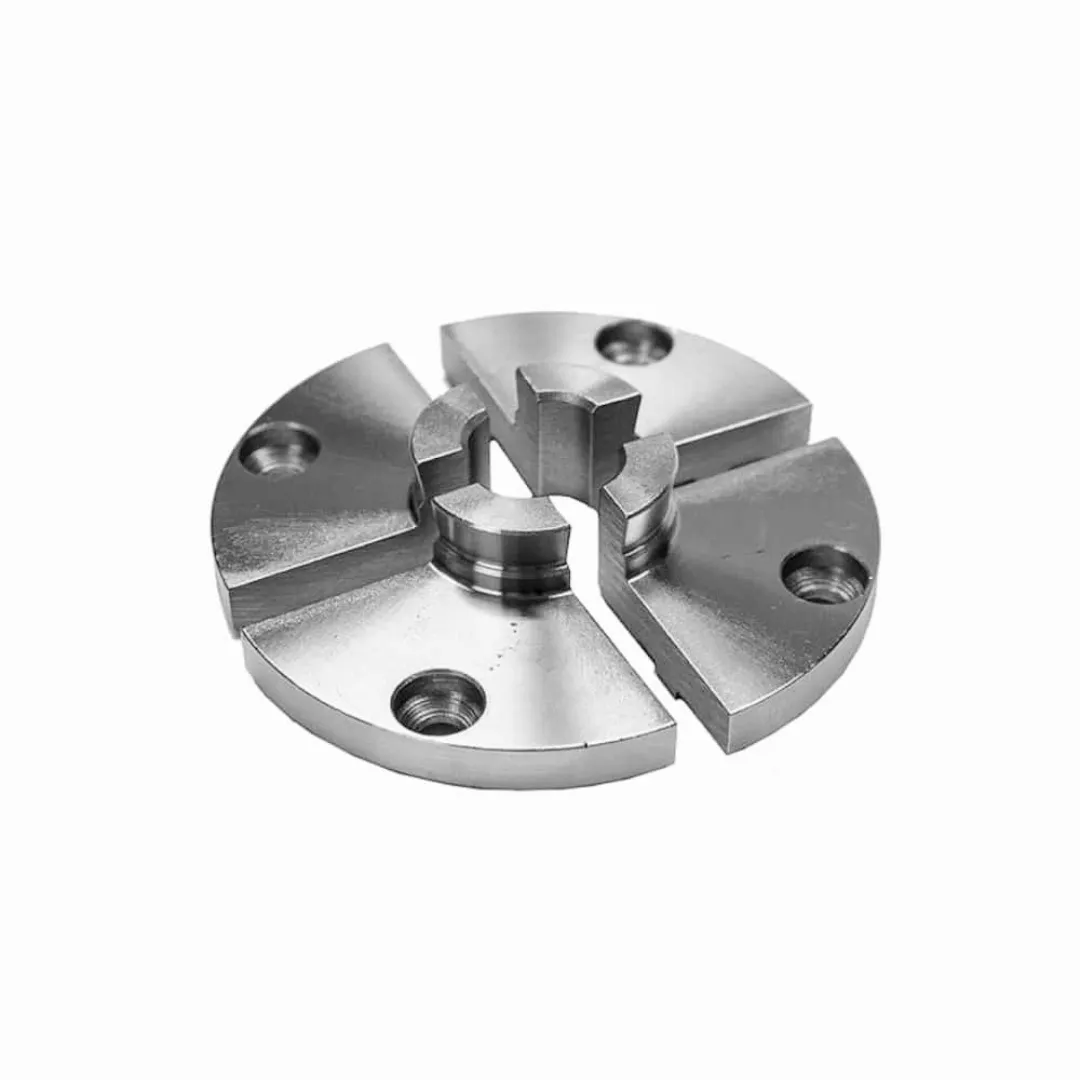

NOVA JS25N Dovetail Jaw Set
The NOVA JS25N Dovetail Jaw Set is One of our most popular and convenient jaws for small bowl and small unsupported spigot turning work.

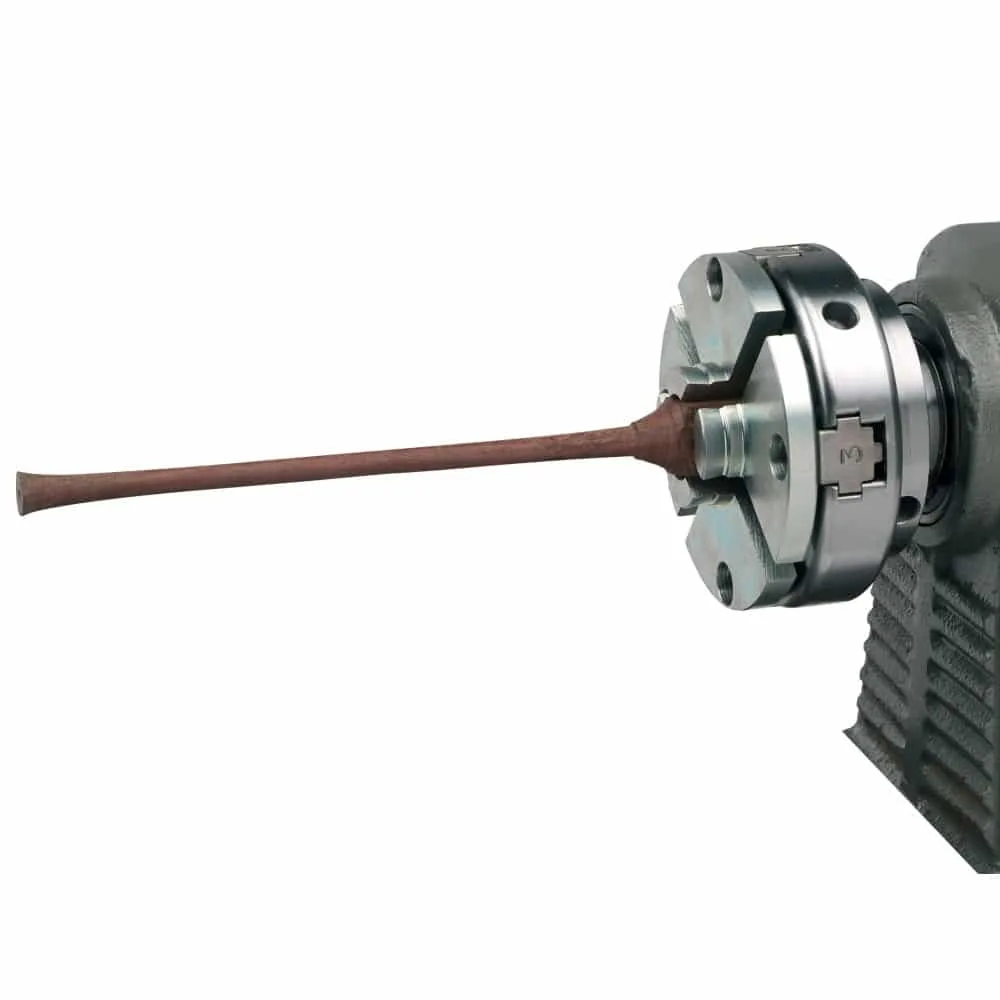

Designed for small bowl (expanding dovetail mounting up to 6″ dia) and small spigot (contracting mode) free end turning work (up to 5″ long). Idea for mini/midi lathe gripping work below size that can be handled by the Standard 50mm Jaws.
Features and Benefits:
- Quick and easy to use for small bowls and small unsupported spigot work
- A great range of smaller projects can be mounted and turned using either the expansion mode (mostly for bowls) or the contraction mode (mostly for spigots)
- Quick mounting makes them ideal for smaller projects
- Multiple turned pieces (i.e. lace bobbins) can be turned from dowel stock
- Made from medium tensile carbon K1045 steel to provide maximum structural strength.
- Standard Woodworm Screw can be used with these jaws
- 2 year warranty
- Able to be used on all Teknatool Chucks in the range
Jaw Travel Range Table
Imperial
| Jaw Set & Chuck Suitability | Expanding Action Specifications | Contracting Action Specifications | |||||
| Jaw Set | Suitable Chuck | Square Stock | Spigot Mode | ||||
| Min | Max | Min | Max | Min | Max | ||
| 25mm JAW | Precision Midi* | 1.024 | 1.417 | 0.354 | 0.709 | 0.394 | 0.787 |
| Nova G3 | 1.024 | 1.811 | 0.354 | 1.102 | 0.394 | 1.220 | |
| SuperNova2 | 1.024 | 1.811 | 0.354 | 1.102 | 0.394 | 1.220 | |
| Titan | 1.024 | 2.205 | 0.354 | 1.496 | 0.394 | 1.614 | |
Metric
| Jaw Set & Chuck Suitability | Expanding Action Specifications | Contracting Action Specifications | |||||
| Jaw Set | Suitable Chuck | Square Stock | Spigot Mode | ||||
| Min | Max | Min | Max | Min | Max | ||
| 25mm JAW | Precision Midi* | 26 | 36 | 9 | 18 | 10 | 20 |
| Nova G3 | 26 | 46 | 9 | 28 | 10 | 31 | |
| SuperNova2 | 26 | 46 | 9 | 28 | 10 | 31 | |
| Titan | 26 | 56 | 9 | 38 | 10 | 41 | |
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
| Weight | 0.448 kg |
|---|---|
| Wood Turning |
Chuck Jaws |
