NOVA JS130N Dovetail Jaw Set

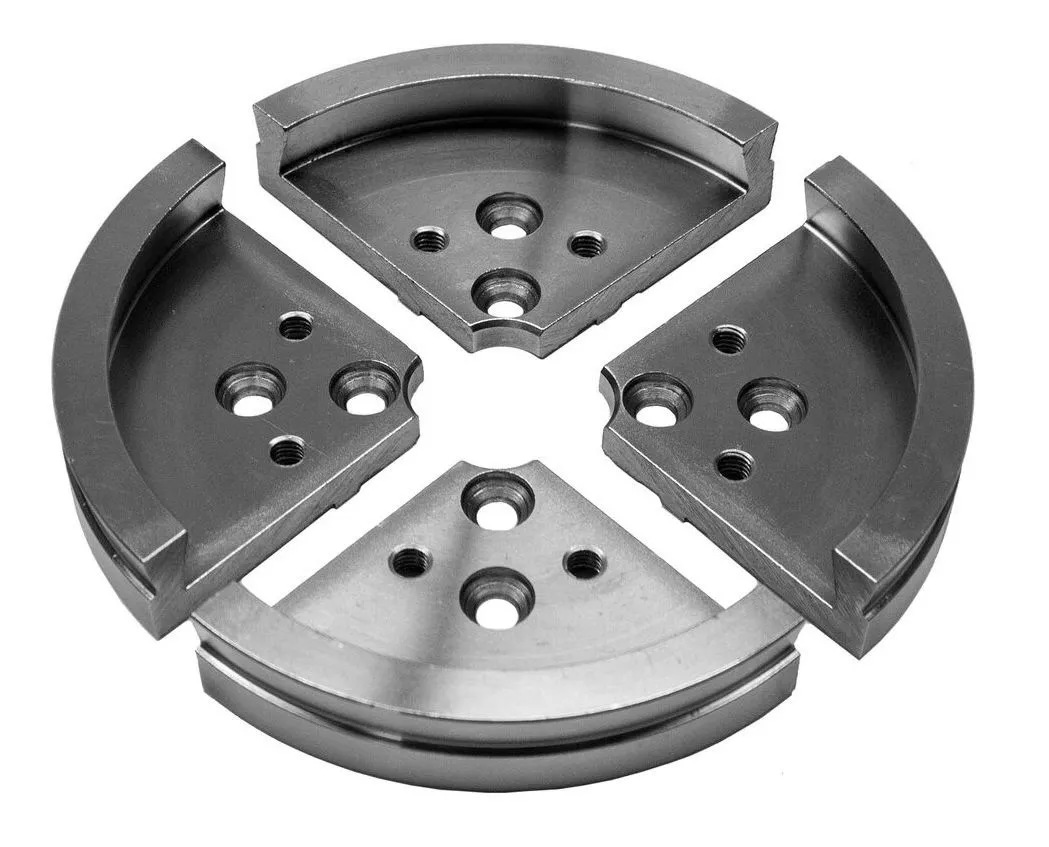

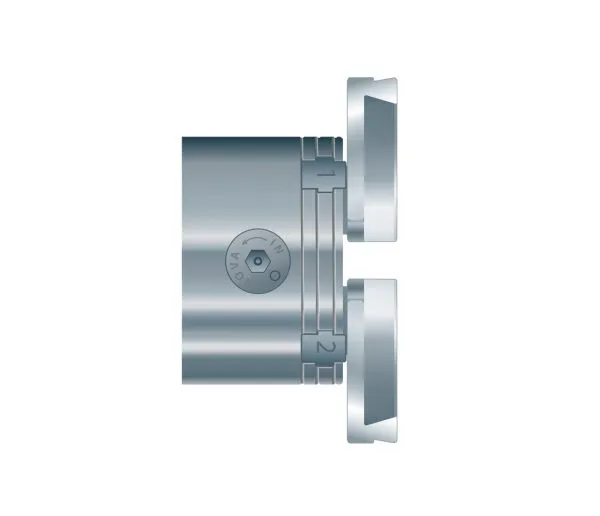

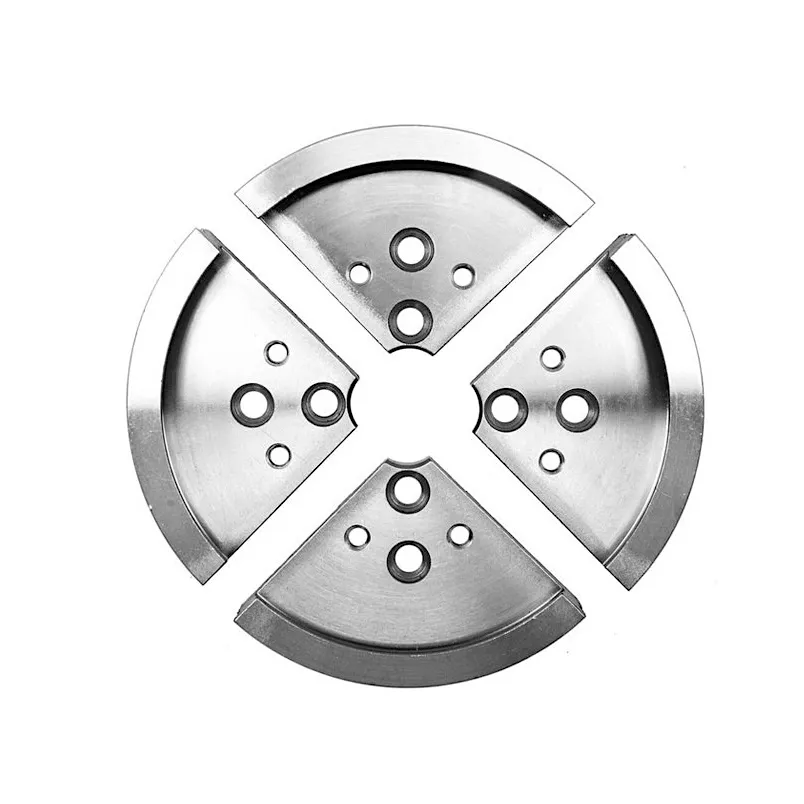

The NOVA JS130N Dovetail Jaw Set (130mm/5″) is an accessory for NOVA Chucks, designed to expand your range and capacity of your standard NOVA Chuck for specific projects and applications. Universally fits to any NOVA Chuck* for maximum flexibility, saving money as duplicate accessories are not needed for different NOVA Chucks. The NOVA JS130N 130mm (5″) Chuck Accessory Jaw Set is designed to mount big bowls, up to 29″in diameter. They are designed particularly for the expanded dovetail, reverse dovetail for gripping footed bowls. With a special NOVA wood turning dovetail profile, designed specifically for maximum strength and holding in wood turning, without crushing the wood fibers. These jaws will hold in both the contraction and the expansion modes. Precisely machined from a single solid piece of 1045 high tensile steel for precise closing, durability and long life. Comes with 4 jaw segments and instructions. Uses the standard fasteners that come with your NOVA Chuck. *Some accessories such as larger jaws are only suitable for use on the larger NOVA Chucks, please check manual prior to use.
Jaw Travel Range Table
Imperial (Inch)
| Jaw Set & Chuck Suitability | Expanding Action Specifications | Contracting Action Specifications | |||||
| Jaw Set | Suitable Chuck | Square Stock | Spigot Mode | ||||
| Min | Max | Min | Max | Min | Max | ||
| 130mm JAW | Precision Midi* | Not Recommended | Not Recommended | Not Recommended | |||
| Nova G3 | Not Recommended | Not Recommended | Not Recommended | ||||
| SuperNova2 | 5.000 | 5.787 | 3.031 | 3.819 | 4.213 | 5.039 | |
| Titan | 5.000 | 6.181 | 3.031 | 4.213 | 4.213 | 5.433 | |
Metric (mm)
| Jaw Set & Chuck Suitability | Expanding Action Specifications | Contracting Action Specifications | |||||
| Jaw Set | Suitable Chuck | Square Stock | Spigot Mode | ||||
| Min | Max | Min | Max | Min | Max | ||
| 130mm JAW | Precision Midi* | Not Recommended | Not Recommended | Not Recommended | |||
| Nova G3 | Not Recommended | Not Recommended | Not Recommended | ||||
| SuperNova2 | 127 | 147 | 77 | 97 | 107 | 128 | |
| Titan | 127 | 157 | 77 | 107 | 107 | 138 | |
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
